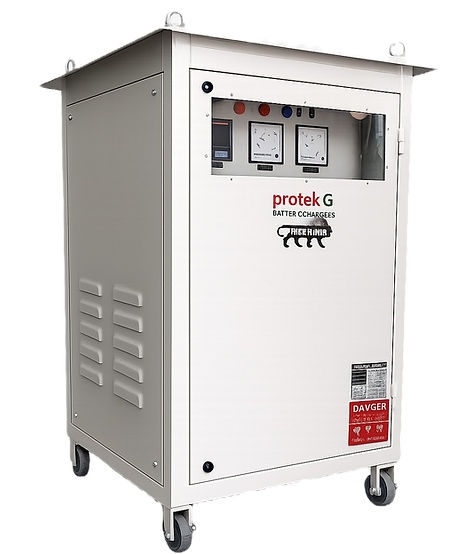

FLOAT CUM BOOST CHARGERS - DC POWER SUPPLIES
RDSO CVCC BATTERY CHARGER FOR RAILWAY

  • ProtekG has a 28 years of experience in designing and manufacturing  of Industrial Float cum Boost charger chargers, BPS Industrial Float Chargers FCBC, FCBC Battery Charger

  • Float Charging are designed to supply a constant DC source for continuous load and intermittent DC loads and simultaneously keep the connected batteries in fully charged condition.

  • These are Constant Current – Constant Voltage chargers. Chargers are Transformers based, have a full bridge rectifier consisting of SCR / Diode or SCR-SCR modules with a phase angle control loop to automatically control the charging rate for a wide range of batteries.

  • BPS chargers are suitable for Float Charging all kinds of batteries like VRLA, Ni-Cad, Tubular, Plante, etc. Float Charging

  • ​Our Battery Chargers are designed as per RDSO Specifications of Indian Railways and are supplied in Western Railways, Eastern Railway and other Railway Zones.

  • Our CVCC Battery Chargers are used in Lightening Chargers, LHB Coaches , Fitted in AC Coachesand TL Coaches.

Float Cum Boost Battery Charger Manufacturers, 310V/25A BATTERY CHARGER TYPE-3, AS PER RDSO SPECIFICATION NO. RDSO/ PE/ SP EC/ AC/ 0008 [REV-2].
RDSO SPECN No: RDSO/SPN/TL/23/99 VER, RDSO SPECN No: ETI/PSI/24(6/81), RDSO SPECN No: No. RDSO/PE/SPEC/AC/0129, RDSOS SPEC. NO.-ETI/PSI/1 ( 6/81 ), RDSO SPECIFICATION NO. RDSO/ PE/ SP EC/ AC/ 0008 [REV-2], RDSO SPECIFICATION RDSO/SPN/23/99(VER.4)
BATTERY CHARGER FOR 110 V, 40 AH FOR LEAD ACID BATTERY AS PER RDSO'S SPECN. NO. - ETI/PSI/1 ( 6/81 ).
48V/125 AMP SMPS-BASED BATTERY CHARGER SUITABLE FOR BOTH LOW MAINTENAN CE FREE BATTERY AND MAINTENANCE AS PER RDSO SPECIFICATION RDSO/SPN/23/99(VER.4), SMPS Battery Charger,
110V DC Industrial Battery Charger Manufacturers, BATTERY CHARGER FOR 110 V, 40 AH LEAD ACID BATTERY AS PER RDSOS SPEC. NO.- ETI/PSI/1 ( 6/81 ) OR LATEST.

TECHNICAL SPECIFICATIONS :

  1. Configuration:  415V. AC ( 3 Phase) / 240 V (1 Phase)+/- 20 %/ +/- 10%, 50 Hz. +/- 3 Hz.

  2. Output: 30 V, 48 V, 110 V, and 220 V. DC supply​

  3. Battery Type: Lead Acid / SMF/PLANTE/ NiCd​

  4. Indications and instruments: Indications for 3-phase mains supply

  • Float / Boost section

  • AC Volt meter with selector switch

  • DC Volt meter with selector switch and battery volt

  • DC Amps meter for load

  • DC Amps meter for Charging



   5. Protection: MCB for Mains incoming supply

                          Over Voltage cut-out circuit
                          Single phasing under voltage for mains MCB for output load
                          Overload cut out by electronics circuit
​
   6. Cabinet Enclosure: Heavy-duty Sheet Steel Enclosure Finished with Powder Coated paint.
   7. Operation: Auto/Manual
   8.Control: CC/ CV close loop
   9.Rectifier:  Full wave half controlled bridge
 10. Optional: Fuse protection for each rectifier element,  Fuse failure relay
                      : DC Earth Fault Relay Alarm Annunciation
                      : Dual Float Charger option   Any other as per requirement.
 11. Comppliance: RDSO SPECN No: RDSO/SPN/TL/23/99 VER,
                                RDSO SPECN No: ETI/PSI/24(6/81),

                                RDSO SPECN No: No. RDSO/PE/SPEC/AC/0129

                                RDSOS SPEC. NO.-ETI/PSI/1 ( 6/81 )

                                RDSO SPECIFICATION NO. RDSO/ PE/ SP EC/ AC/ 0008 [REV-2].

                                 RDSO SPECIFICATION RDSO/SPN/23/99(VER.4)
